Electric multidirectional Sideloaders
Specially designed for transporting and storing long and bulky profiles such as aluminium or PVC bars, are ideal for working in warehouses with narrow aisles, between cantilever racks or pallet racks.
Speed and space saving
The combination of cutting-edge technology, robust materials, and careful design ensures that Profilmover multidirectional sideloaders keep high efficiency and reliability even in demanding working conditions. Loading capacities from 1,500 kg to 4,000 kg.
The AC electric motors and drive systems have been designed in such a way that they are maintenance-free, also thanks to the quality of the materials and advanced technology used.
Quick and easy access to the compartments allows rapid intervention in case of need, reducing machine downtime.
The very compact dimensions make the sideloader easily manoeuvrable and suitable for any type of aisle. The 360° rotation of all wheels and the different steering programmes ensure comfortable and safe driving in all situations.
The rack-and-pinion reach mast system allows very precise and highly silent movements.
Based on the three-point support concept, it is ideal for working even on uneven floors, ensuring great stability and a constant grip of the wheels on the ground.
Thanks to the twin front wheels, the loading deck is extremely low, allowing to make the most of the space in the shelves.
The remote control system allows monitoring and geolocation of the machine. The control unit installed on board monitors general operations, analyses faults and transfers data to a remote server for beckup.
Electric multidirectional forklifts
Specially designed for transporting and storing long and bulky profiles such as aluminium or PVC bars, these vehicles are ideal for working in warehouses with narrow lanes, between cantilever racks or pallet racks.
Speed and space recovery
The combination of cutting-edge technology, robust materials, and careful design ensures that Profilmover multidirectional forklifts maintain high efficiency and reliability even in demanding working conditions. Loading capacities from 1,500 kg to 4,000 kg.
The AC electric motors and drive systems have been designed in such a way that they are maintenance-free, also thanks to the quality of the materials and advanced technology used.
Quick and easy access to the compartments allows rapid intervention in case of need, reducing machine downtime.
The very compact dimensions make the side forklift easily manoeuvrable and suitable for any type of lane. The 360° rotation of all wheels and the different steering programmes ensure comfortable and safe driving in all situations.
The rack-and-pinion column feed system allows very precise and highly silent movements.
Based on the three-point support concept, it is ideal for working even on uneven floors, ensuring great stability and a constant grip of the wheels on the ground.
Thanks to the twin wheels at the front, the loading platform is extremely low, allowing optimum utilisation of shelf space.
The remote control system allows monitoring and geolocation of the vehicle. The control unit installed on board the machine monitors general operations, analyses faults and transfers data to a remote server where archiving is carried out.
LOADING CAPACITY FROM 1500 TO 4000 KG
UP TO 10m HIGH
CUSTOMISABLE FOR ALL NEEDS
36 months warranty
Perfect for long, bulky aluminium or PVC profiles
The sideloaders Profilmover are specially designed for the precise and safe handling of all long or palletised materials, even in very narrow aisles.
PROFILOVER EMT 2037- SG
With seated operator
WIDE VISIBILITY IN ALL DIRECTIONS
- Load capacity up to 2.500 kg
- Loading platform width from 800 to 1.400 mm
- Lifting height up to 10.000 mm
- Fixed measure 800 mm
- Fork carriage width 1.200 – 3.200 mm
- Wheels CUSHION RUBBER
- Battery 48V 620-775 Ah
- Side Cabin view- SG Sitting
PROFILOVER EMT 2037- ST
With standing operator
QUICK ACCESS TO THE CABIN
- Load capacity up to 2.500 kg
- Loading platform width from 800 to 1.200 mm
- Lifting height up to 8.000 mm
- Fixed measure 700 mm
- Fork carriage width 1.200 – 3.200 mm
- Wheels CUSHION RUBBER
- Battery 48V 620Ah
- Side Cabin view- ST Standing
PROFILOVER EMT 2037- SG
With seated operator
WIDE VISIBILITY IN ALL DIRECTIONS
- Loading capacity up to 2,500 kg
- Loading platform width from 800 to 1,400 mm
- Lifting height up to 10,000 mm
- Fixed dimension 800 mm
- Fork plate width 1,200 - 3,200 mm
- CUSHION RUBBER Wheels
- 48V 620-775 Ah battery
- Side Cabin - SG Sitting
PROFILOVER EMT 2037- ST
With standing operator
MAXIMUM SPEED OF ASCENT AND DESCENT
- Loading capacity up to 2,500 kg
- Larghezza pianali di carico da 800 a 1.200 mm
- Lifting height up to 8,000 mm
- Fixed dimension 700 mm
- Fork plate width 1,200 - 3,200 mm
- CUSHION RUBBER Wheels
- 48V 620 Ah battery
- Side Cab - ST Standing
Tilting frame
Based on the three-point support concept, it is ideal for working even on uneven floors, ensuring great stability and a constant grip of the wheels on the ground.
Full 360° rotation
The 360° wheel rotation enables innovative multidirectional driving and unique manoeuvrability A series of sensors monitor the position of all wheels, allowing a rapid change of direction, from frontal to lateral travel, from diagonal travel to carousel.
Easy and quick battery replacement
Thanks to the easy access to the battery compartment and the two integrated lifting hooks, the battery can be replaced with ease, minimising downtime.
Ease of use and maximum control
The large, easy-to-use display shows all machine functions. The manual levers allow simple use of the hydraulic drives with precise control of the movements.
For indoor and outdoor working environments
Equipped with large-diameter cushion rubber wheels, it can work both inside and outside warehouses, on industrial or asphalt floors.
Compact lifting mast
Made with oversized steel profiles, to ensure great rigidity and high capacities even at maximum lifting height. The wide fork carriage has a compact design to give good visibility while driving.
Full remote control
Through a web interface, the remote control system allows monitoring of alarms, shocks, general functions and geofencing of the machine on outdoor areas. A control unit installed on the forklift allows the transfer of machine data to a remote server where archiving is carried out.
Multidirectional
The multidirectional drive offers 10 different steering programmes. The driver can select the most appropriate and safe drive depending on the transported load and on the working environment, driving the sideloader in full safety.

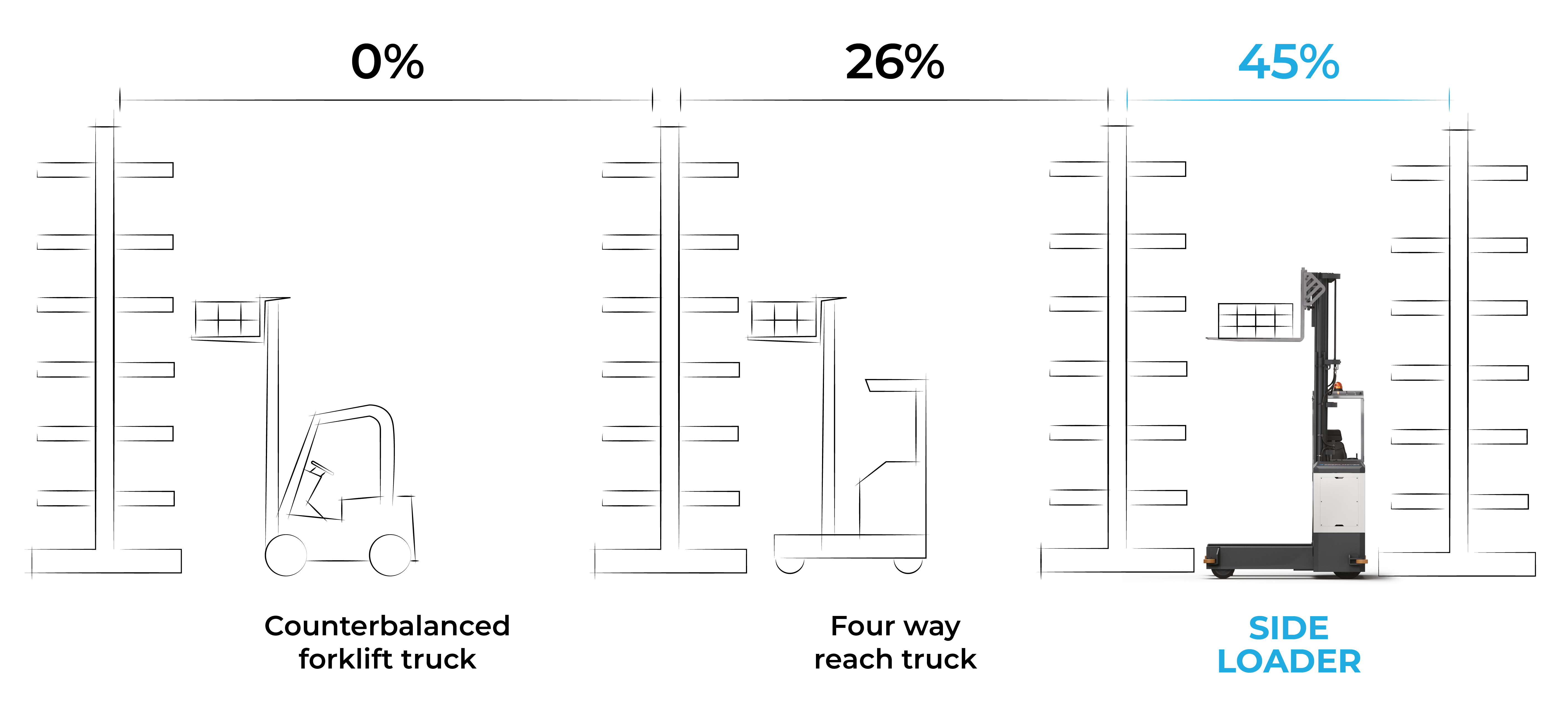

Space saving
Profilmover multidirectional sideloaders are designed and made for handling long, palletised materials in aisles and narrow workspaces. The sideloader allows space savings of up to 45% compared to a traditional forklift.
